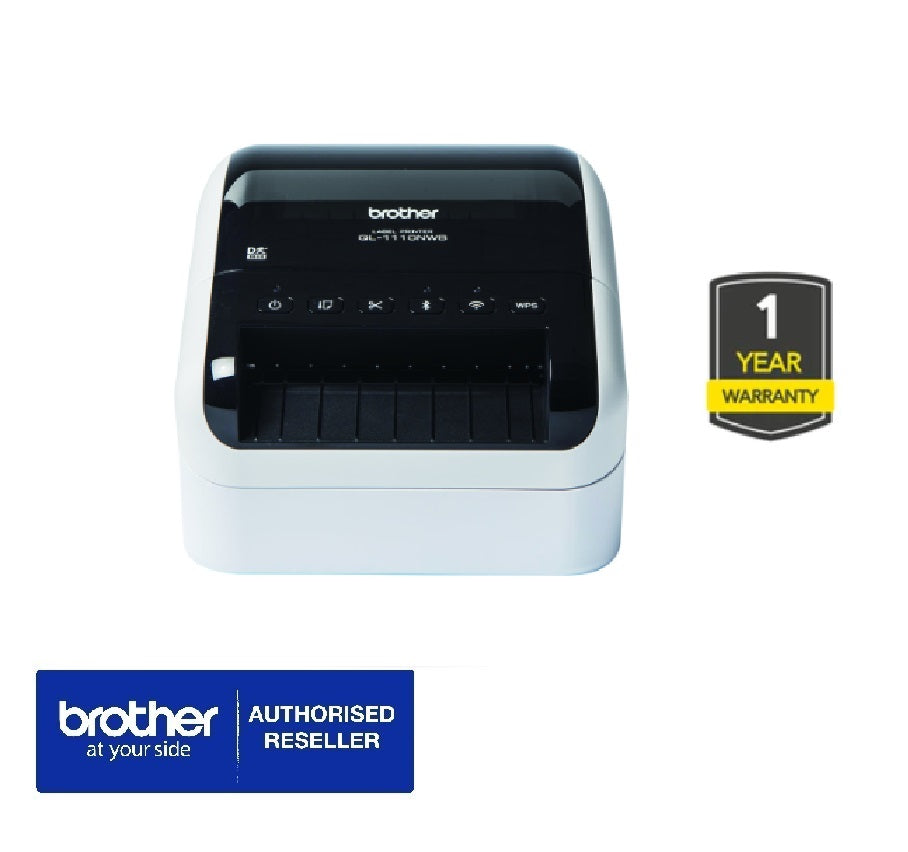

Brother QL-1110NWB Label Printer
Brother QL-1110NWB Label Printer
Professional Shipping Label Printer
- Auto Crop tool for Shipping labels
- Auto cut function
- Print up to 103mm DK rolls width
- 110 labels per minute fast print speed
- Template printing through USB host connected devices
- Remote template update via FTP
With several connectivity options available, labels can be printed up to 4 inches or 103mm in width via a computer or smart device with Brother’s QL-1110NWB label printer. QL-1110NWB label printer can also support label printing for products “Fulfilled By Amazon” (FBA) warehouse with the use of the “Crop Print” function to detect and print the barcode labels. Hence, QL-1110NWB label printer is a reliable labelling solution for Mailing, Logistics, and Warehousing industries.
Large print width
Print up to 4 inches or 103mm in width, and at a high resolution of up to 360 dpi.
A variety of label width
Print on DK Die-cut Paper labels or Continuous length Paper or Film labels, Continuous length labels can be trimmed to a precise length of up to 3m in length using its Auto-cut function.
Flexible connectivity options
Come with the most connectivity options ranging from Bluetooth, USB, Wired and Wireless connections to choose from, QL-1110NWB label printer can print labels via AirPrint® on iOS® devices or Mac OS® systems via Bluetooth or Wireless connection with Android™ devices.
Template printing via USB host connected devices
QL-1110NWB label printer can connect to specialised equipment such as a barcode scanner or measuring device via a USB host connection with no computer connection required.
These devices can send commands to select the required label templates stored in the label printer’s memory and send the required data to merge onto the label, before issuing the print command to print.
For example, barcodes can be scanned containing the command to select the built-in templates to print out the barcode labels.
“Crop Print” function
QL-1110NWB label printer can support label printing for products “Fulfilled By Amazon” (FBA) warehouse by using the “Crop Print” function.
Built-in the label printer driver, this intelligent feature can detect, scan, and extract each barcode one at a time and print out each label.
iPrint&Label mobile app
Brother’s P-touch iPrint&Label is a complimentary mobile app that enables easy label creation and printing from Apple® or Android™ devices via a Bluetooth or Wireless connection with QL-1110NWB label printer.
Create labels using Brother’s P-touch Editor software and share them to a mobile device to print, save, or edit on iPrint&Label mobile app for a fully integrated solution.
P-touch Editor Lite software
Designed to work like a USB flash drive, simply connect QL-1110NWB label printer to a computer with a USB connection and launch the built-in P-touch Editor Lite software from the drive without any software or printer driver installation required. Images, frames, and fonts can be printed using this software.
With the network capability in QL-1110NWB label printer, P-touch Editor Lite software can be run on several computers in the office to print labels to one label printer with no software or printer driver installation required.
P-touch Editor software
Brother’s P-touch Editor is a complimentary label design software with a wide variety of specially designed templates, symbols, clipart, text design, and barcodes. Import graphic files to create a logo and print labels on demand from an imported database via a Bluetooth, Ethernet, USB, or Wireless connection with a PC or Mac OS® system.
P-touch Editor is a comprehensive and versatile label design software that can provide a truly connected solution to accommodate any label application.
Remote templates
update via FTP server
QL-1110NWB label printer can links to a network with an internet connection that connects to a remote FTP server.
If there are any new templates available to download, they will be updated automatically. This is an ideal solution for many remote sites with label printers as it saves time in updating manually at each location.
Seamless integration
Developed for advanced users, system integrators can leverage on Brother’s Software Development Kits (SDK) for Windows® or Mobile Software Development Kits (SDK) for iOS® and Android™ OS and print command languages such as ZPL II emulation, Raster, and CPCL emulation for seamless integration into any legacy system for label printing.
Basic SpecsKEYBOARDNo Keyboard MEDIA TYPEDK roll AVAILABLE TAPE WIDTHS12 - 103mm DIMENSION (WIDTH X DEPTH X HEIGHT)170 mm x 222 mm x 151 mm WEIGHT1.74 kg WARRANTY1 Year Carry in Warranty Print OutputPRINT RESOLUTION300dpi PRINT SPEED69 standard address labels/min, 110mm/sec NO. OF LINES PRINTABLEAdjustable within 103mm width NUMBER OF CHARACTERSNo NUMBER OF SYMBOLSNo BAR CODE
NUMBERINGPrint via P-touch Editor MediaTAPE CASSETTEUp to 103mm ROLL WIDTH103mm FunctionsCUTTERAuto MULTI-BLOCK PRINTINGPrint via P-touch Editor COPY PRINTINGPrint via P-touch Editor MIRROR PRINTINGPrint via P-touch Editor PREVIEWvia P-touch Editor MemoryFILE STORAGE7.8MB, 255 templates MEMORY BUFFER SIZENo Power SupplyPOWER SUPPLYBundled with 220 - 240V AC internal power supply AUTO POWER-OFFYes AC ADAPTORAD-9100ESA InterfaceBUTTONPower, Feed, Cutter, Bluetooth, Wi-Fi, WPS Button DISPLAYNo BACKLIGHTNo ConnectivityUSBYes WIRELESS LANIEEE802.11b/g/n Wireless LAN |
