Fujitsu Scanner Sv600

Fujitsu Scanner Sv600

$979.00
$979.00
Sale Sold out

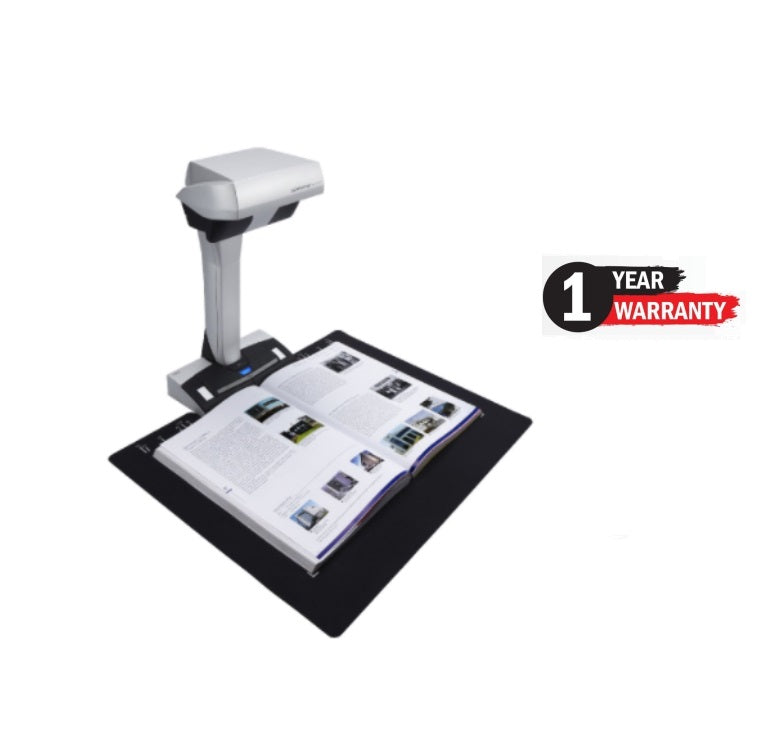

Overhead scanner with a new perspective on scanning

The ScanSnap SV600 is an overhead style contactless scanner that provides a new perspective on document scanning. Unlike the typical scanner, you can easily scan newspapers, magazines, books or documents of up to 30mm thick directly with the overhead LED, without cutting or damaging them.

  • A3 document scanning
  • Multiple document scanning
  • VI Technology for steady images
  • Auto Book Correction and Point Retouch function to optimize scanned images
  • Page Turning Detection function and Time Mode for smooth book scanning
  • Compatible with PC and Mac
  • Best experience with ScanSnap Home
  • Conventional software ScanSnap Manager also available



Specifications

Product Name ScanSnap SV600
Scanner Type Overhead, Simplex
Scanning Speed*1 (A3 Landscape) Auto mode*2 3 seconds / page
Normal mode 3 seconds / page*3 (Color / Grayscale: 150 dpi, Monochrome: 300 dpi)
Better mode 3 seconds / page*3 (Color / Grayscale: 200 dpi, Monochrome: 400 dpi)
Best mode 3 seconds / page*3 (Color / Grayscale: 300 dpi, Monochrome: 600 dpi)
Excellent mode 3 seconds / page*3(Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi)
Scanning Color Mode Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome detection)
Image Sensor Lens reduction optics / Color CCD x 1
Light Source (White LED + Lens illumination) x 2
Optical Resolution 285 to 218 dpi (Horizontal scanning), 283 to 152 dpi (Vertical scanning)*4
Document Size Maximum 432 x 300 mm (17.0 x 11.8 in.)
Minimum 25.4 x 25.4 mm (1 x 1 in.)*5
Paper Weight (Thickness) 30 mm (1.18 in.) or less
Interface*6 USB2.0 / USB1.1 (Connector Type: Type-B)
Power Requirements AC 100 to 240 V, 50/60 Hz
Power Consumption Operating Mode 20 W or less
Sleep Mode 2.6 W or less
Auto Standby (Off) Mode 0.4 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR®, RoHS
Dimensions (W x D x H) 210 x 156 x 383 mm (8.27 × 6.14 × 15.08 in.)
Weight 3 kg (6.62 lb)
Driver ScanSnap specific driver
Windows®: Does not support TWAIN / ISIS®
macOS: Does not support TWAIN
Software*7 ScanSnap Home (all-in-one document management software/driver)
ScanSnap Manager (Conventional driver)
Kofax Power PDF Standard (Windows)*8
Kofax Power PDF Standard for Mac (Mac)*8
ABBYY FineReader for ScanSnap™
Image Processing Functions Deskew by text on document, Automatic size detection, Automatic rotation, Automatic color detection, Book image correction*9, Multiple document detection*10
Included Items AC cable, AC adapter, USB cable, Safety Precautions, Background Pad, Extenders (x2)
  1. Scanning speed may vary due to the system environment used. The time is measured between actual start of scanning and finish scanning.
  2. "Better mode" or "Best mode". Switch between "Better mode" and "Best mode" depends on the length of the document, A4 (portrait, 200 dpi), A6 size or below (300 dpi).
  3. Time between actual start of scanning (scanning pad) and finish scanning.
  4. Optical resolution differs due to different scanning angle on the same document.
  5. For documents of thickness over 5 mm, the maximum document size is 400 x 300 mm.
  6. Compatible with USB 3.0 port but connection will run as USB 2.0 speed.
  7. Installation and updates require Internet availability. Software/driver updates to the latest versions are recommended.
  8. Not available when using ScanSnap Connect Application.
  9. Automatically correct distortion caused by the curve of an opened book or magazine.
  10. Automatically crop several documents in one scan.

System Requirements for PC

Compatible Operating Systems*1 Windows 11 / 10 / 8.1 (32-bit / 64-bit) / 7 (32-bit / 64-bit)
Driver / Applications*2 ScanSnap Home*4 Supported
ScanSnap Manager Supported
Kofax Power PDF Standard*5 Supported
ABBYY FineReader for ScanSnap™ Supported
Hardware Requirements*3 CPU*6 Intel® or Intel®-compatible processors
Display Resolution 1,024 × 768 pixels or more
Disk Capacity*7 3.8 GB or more of the free hard disk space
  1. Operate Windows in desktop mode. ScanSnap scanners do not run with Windows® 11 and 10 ARM-based PCs such as Surface® Pro X (Microsoft®).
  2. Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support Site for the latest support information.
  3. The ScanSnap device may not work if the connected computer does not meet these requirements.
  4. Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support Site for download information.
  5. Please refer to the included license certificate to download the software.
  6. Scanning speeds may vary due to the system environment.
  7. .NET Framework 4.8 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.

*The system requirements may change depending on the support policies of the above system and third-party software.

System Requirements for Mac

Compatible Operating Systems macOS Mojave 10.14 or later
Driver / Applications*1 ScanSnap Home*3 Supported
ScanSnap Manager Supported
Kofax Power PDF Standard*4 Supported
ABBYY FineReader for ScanSnap™ Supported
Hardware Requirements*2 CPU*5 Intel® or Apple M1 / M2 processors
Display Resolution 1,024 x 768 pixels or more
Disk Capacity 2.0 GB or more of the free hard disk space
  1. Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support Site for the latest information.
  2. The ScanSnap device may not work if the connected computer does not meet these requirements.
  3. Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support Site for download information.
  4. Please refer to the included license certificate to download the software.
  5. Scanning speeds may vary due to the system environment.

*The system requirements may change depending on the support policies of the above system and third-party software.
