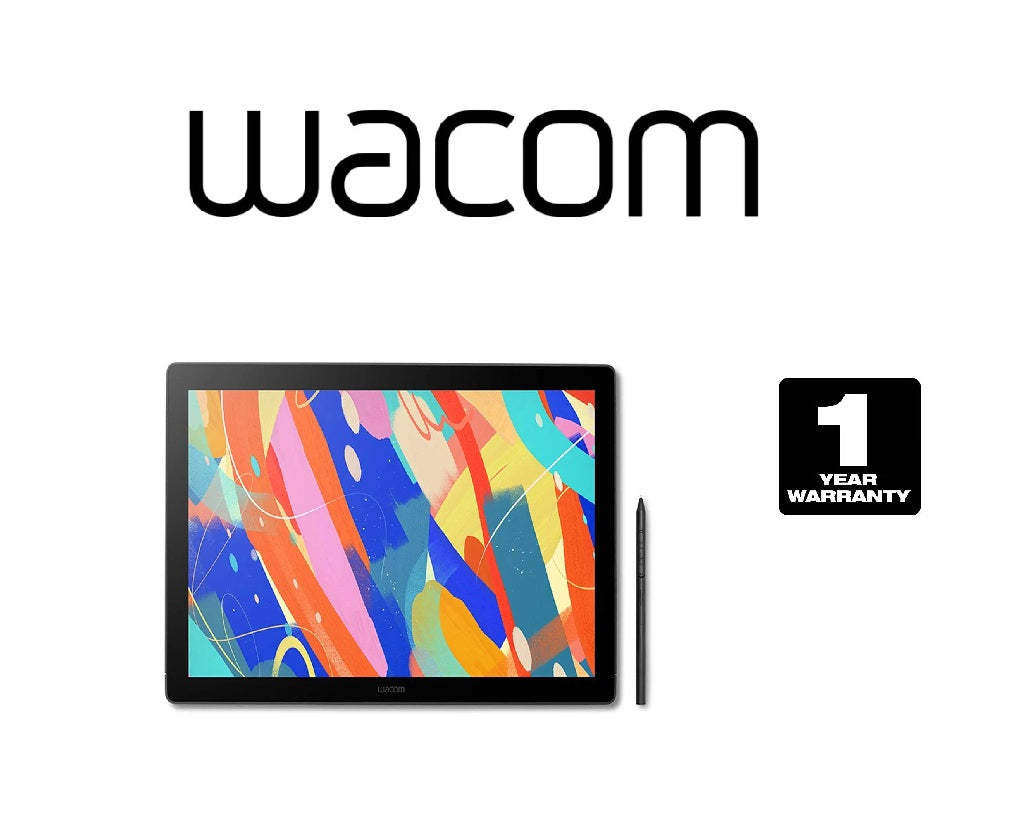

Wacom Cintiq 16 ( DTK168 )

Product Type

Pen Display

Model Code

DTK168

Product Dimensions

259 x 384 x 15 mm / 10.2 x 15.1 x 0.6 in

Product Weight

2.0 kg / 4.5 lb

Product Color

Black

Built-in Stand

Yes - 20 degrees adjustability

Productivity Boosters

• 2 buttons for Power, OSD menu
• Fan-less
• Direct bonding
• VESA 75 x 75 mm compatible
• Dedicated pan, scroll, zoom, brush size
• Precision Mode
• Radial Menu
• Display Toggle
• On-screen controls
• Pen gestures

Input Power

• DC 5V 3A: USB-C (USB-C cable connection)
• DC 9V 2.77A: USB-C (USB-C cable + AC Power adapter connection)

Storage Temperature and Humidity

• Temperature: -10 to 60 degree C
• Humidity: 30 to 90% RH (non-condensing)

Operating Temperature and Humidity

• Temperature: 5 to 40 degree C
• Humidity: 30 to 80% RH (non-condensing)

Warranty

1 year

Screen Size

16.0 in / 40.6 cm

Active Area

345 x 215 mm / 13.6 x 8.5 in

Display Technology

IPS

Surface

AG glass

Touch Technology

N/A

Multi-touch

N/A

Display Resolution

2560 x 1600 pixels

Supported Resolution

• 640 x 480 @60Hz
• 720 x 480 @60Hz
• 720 x 576 @50Hz
• 800 x 600 @60Hz
• 1024 x 768 @60Hz
• 1280 x 720 @50/60Hz
• 1280 x 1024 @60Hz
• 1440 x 900 @60Hz
• 1600 x 1200 @60Hz
• 1680 x 1050 @60Hz
• 1920 x 1080 @50/60Hz
• 1920 x 1200 @60Hz
• 2560 x 1600 @60Hz

Uniformity Compensation Function

N/A

Pixel Pitch

0.1346 (H) x 0.1346 (V) mm

Display Colors

16.7 million

Color Depth

8bit x RGB = 24bit

Color Gamut Coverage Ratio

• DCI-P3 99% (CIE1931) (typ)
• sRGB 100% (CIE1931) (typ)

Color Temperature, Custom Color

5000K/5700K/6500K/7500K/9300K/DCI-P3

Aspect Ratio

16:10

Viewing Angle

178 deg. (89/89) H / 178 deg. (89/89) V (typ)

Contrast Ratio

1400:1 (typ)

Brightness

290cd/m² (typ)

Response Time

12ms (typ)

Color Gamut Coverage Ratio

• Native
• sRGB
• DCI-P3
• Display P3

Display Quality

Each LCD panel is produced under very stringent quality standards. Production techniques cannot guarantee an absolutely perfect TFT display. Wacom does not allow pixels to always white or always black. A small number of pixels are allowed to show a wrong color for some parts of the color spectrum

Pen

Wacom Pro Pen 3

Pen Technology

Electromagnetic resonance technology

Pen Pressure Levels

8192 levels

Supported Pen Tilt Angle

60 degrees

Pen Resolution

5080 LPI

Pen Type

Pressure-sensitive, cordless, battery-free

Switches

3 side switches

Compatibility

• Windows 10 or later (latest service pack/build)
• macOS 13 or later
• Android* 8.0 and above
• The latest version of ChromeOS**

*Display mode requires manufacturer specific OS support. See https://www.wacom.com/comp for display mode compatible devices.

**Due to ChromeOS specification, some pen and tablet features may not be available. See https://support.wacom.com/ for more details.

****This product works with devices capable of running the latest version of ChromeOS. Google is not responsible for the operation of this product or its compliance with safety requirements. Chromebook is a trademark of Google LLC. ChromeOS may not be available in certain regions/countries.

(2025 October)

Compatibility

• USB-C port with DisplayPort™ Alt Mode*, or HDMI port and USB port, internet access to download driver.
• To achieve the maximum resolution and refresh rate on Wacom Cintiq 16, the host PC ports need to support 2560 x 1600 @60Hz.

I/O Connectors

• 1x mini HDMI (HDMI Type-C)
• 1x USB-C

Wireless Connectivity

N/A

Source Video Signal

• DisplayPort
• HDMI

Output Video Connector

N/A

Security Lock Slot

Kensington^® Security Slot

What's Included

• 1x Wacom Cintiq 16 body
• 1x USB-C to C Cable (1.8m/DisplayPort Alt Mode)
• 1x USB-C to C Cable (1.8m/Power)
• 1x Wacom Pro Pen 3
• 1x Vari-angle Pen Stand (incl. 1 x Standard Nib, 1 x Felt Nib)
• 1x Nib Remover
• 1x AC Power Adapter
• 1x AC Plug Head
• 1x Quick Start Guide
• 1x IPI sheet

Optional Accessories

• Wacom Pro Pen 3 (ACP50000DZ)
• Wacom Pro Pen 3 Straight Grip (ACK34801Z)
• Wacom Pro Pen 3 Flare Grip (ACK34802Z)
• Wacom Pro Pen 3 Wood Grip (ACK35304Z)
• Wacom Pro Pen 3E (ACP501E00DZ)
• Pen Tether for Pro Pen 3E (ACK42007K)
• Wacom Pro Pen 3 Standard Nibs (ACK24801Z)
• Wacom Pro Pen 3 Felt Nibs (ACK24819Z)
• Wacom Pro Pen 3 Rubber Nibs (ACK253010Z)
• Wacom Cintiq Vari-angle Pen Stand (ACK45120Z)
• Wacom Adjustable Stand (ACK651KZ)
• USB-C to C Cable 1.8M (ACK4490601Z)
• HDMI to mini HDMI Cable 1.8M(ACK45106Z)
• USB-C to A Cable 1.8M (ACK4480601Z)
• ExpressKey Remote (ACK411050)
• Wacom Pro Pen 2 (KP-504E)
• Wacom Pro Pen slim (KP-301E)
• Wacom Pro Pen 3D (KP505)
• Pro Pen (KP-503E)
• Grip Pen (KP-501E)
• Classic Pen (KP-300E)
• Art Pen (KP-701E)
• Accessory Pen Black DTK-2451/DTH-2452 (KP302E)
• Power Adapter & Plug Head (ACK44914)
