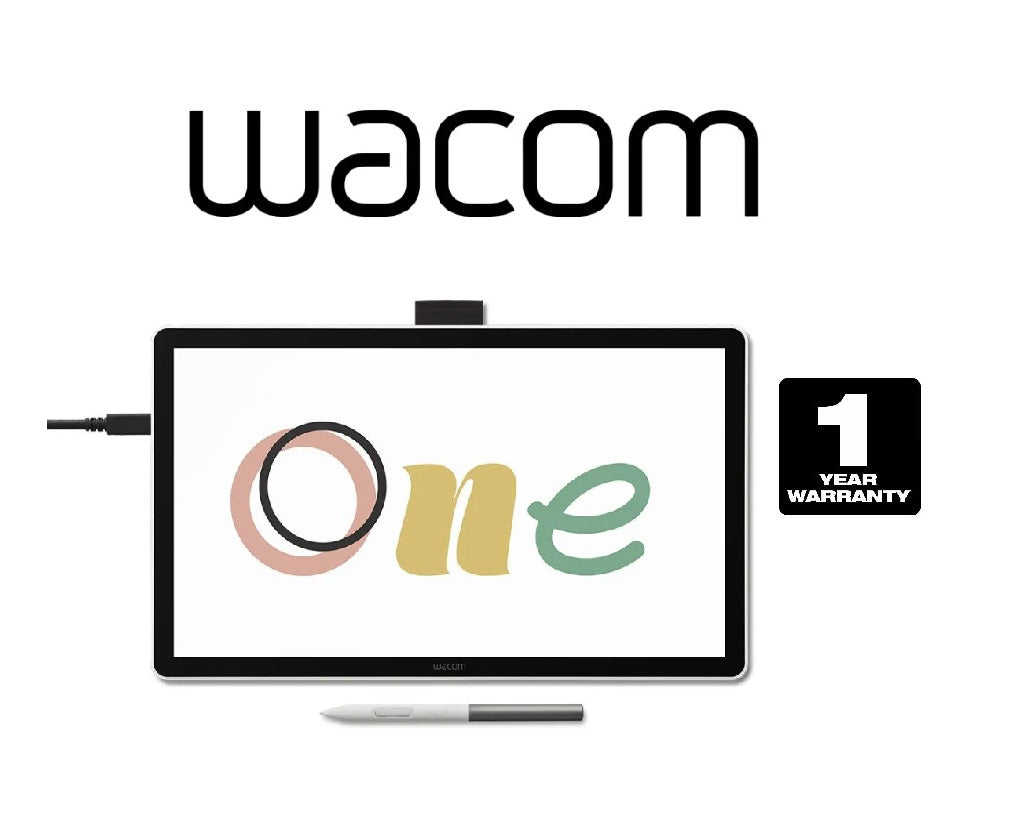

Wacom one 14
Wacom one 14
Regular price
$499.00
Regular price
Sale price
$499.00
Unit price
per
Couldn't load pickup availability
Full technical specifications
Display Information
Screen size (approx.)
14"
Screen Resolution
1920 x 1080
Color Depth
8bit x RGB (24bits)
Screen size
14.0 inch, 35.6 cm
Display resolution
1920 x 1080 pixels
Technology
IPS
Glass / surface
AG + AF Glass
Active area (mm)
309 x 174 mm
Active area (inch)
12.2 x 6.9 in
Aspect ratio
16:9
Supported resolution
640x480 @60Hz 720x480 @60Hz 720x576 @50Hz 800x600 @60Hz 1024x768 @60Hz 1280x720 @50/60Hz 1280x1024 @60Hz 1600x1200 @60Hz 1920x1080 @50/60Hz
Pixel pitch
0.1611 (H) x 0.1611 (V) mm
Viewing angle
178 deg. (89/89) H/178 deg. (89/89) V (typ)
Color depth
8bit x RGB = 24bit
Color gamut coverage ratio
sRGB 98% (CIE 1931) (typ)
Contrast ratio
1000:1 (typ)
Brightness
285cd/m2 (typ)
Response time (G2G)
16ms (typ)
Pen Specification
Pen name
Wacom One Standard Pen
Pen pressure levels
4096 levels
Pen type
Pressure-sensitive, cordless, battery-free
Number of switches
2 side switches
Pen tilt supported
60 degrees
Pen resolution
2540 lpi
Pen technology
Electromagnetic resonance technology
Reading height
8 mm
Maximum report rate
360 report/second
Pen dimensions
149.9mm x 9.8mm
Pen weight
9.9g
Touch Specification
Multi-Touch
No
Connectivity
I/O Ports
1 x USB Type-C
Output video connector
n/a
Output video signal
n/a
Dimension And Weight
Product dimensions (L x W x H) (mm)
336 x 201 x 10 mm
Product dimensions (L x W x H) (inch)
13.2 x 7.9 x 0.4 in
Product weight (kg)
0.75kg
Product weight (lbs)
1.65lbs
System Requirements
System requirements
Windows 10 and later macOS 13 and later The latest version of ChromeOS
Hardware requirements
USB-C port with DisplayPort™ Alt Mode*, internet access to download driver. To achieve the maximum resolution and refresh rate on Wacom One 14, the host PC ports need to support 1920 x 1080@60Hz. *Thunderbolt 3 or later is also supported.
What Is Included
Product
Wacom One 14 body
Documents
QSG IPI Warranty Card + QR cord Card "
Power
n/a
Others
Replacement nib (POM) x 3pcs Nib removal tool x 1pc
Logistical Information
Product Box Dimensions (In.)
14.4 x 9.1 x 2.2 in
Product Box Dimensions (mm)
365 x 230 x 55 mm
Product Box Gross Weight (lbs)
2.87 lb
Product Box Gross Weight (kg)
1.30 kg
Product Box Net Weight (lbs)
1.76 lb
Product Box Net Weight (kg)
0.8 kg
